Hurricane Door Locks, Hinges & Multipoint Systems

Florida Building Code 2023 Section 2411.3.2.3 requires that door and window assemblies be installed in accordance with the conditions of test and approval, meaning the exact hardware used during testing must be installed in the field. FEMA's Recovery Advisory 4, published in March 2018 after Hurricanes Irma and Maria, found that wind-pressure failure of personnel doors is rare, and when it does occur it typically traces to inadequate latch throw, inadequate attachment of hinges, or inadequate attachment of the door frame to the building. FEMA also noted those deficiencies can often be cost-effectively mitigated with new hardware and/or fasteners. That finding reinforces why hurricane door locks are not optional accessories, they are structural components. An approval such as Miami-Dade NOA 23-0717.01 terminates if there is a revision or change in the materials, use, or manufacture of the product, which includes swapping a listed lockset for an unlisted one. Every permit SafeGuard files includes the Florida Product Approval or Miami-Dade NOA number for each product installed, so the tested hardware is on record at the building department.

Impact door hardware splits into 2 main locking strategies. A conventional lock-and-deadbolt setup engages the frame at a single point near the handle, leaving the top and bottom of the door free to flex under pressure. A multipoint locking system (MPLS) engages the frame at 3 or more points, typically head, mid-height, and sill, distributing wind load across the entire door height. Therma-Tru's Florida statewide approvals table classifies every Florida approval by locking type: 'Lock & Deadbolt', 'MPLS', or 'Lock & Deadbolt and MPLS', alongside swing direction, HVHZ status, and impact rating. Florida approval FL-21142.12's hardware table names specific locksets, Schlage F51 knob and B60 deadbolt, Kwikset Signature Series knob and 980 deadbolt, and a Hoppe multipoint MPLS model, and the approval's drawing shows multipoint lock hardware (labeled MPLS) in plan view. Meanwhile, NOA 24-0116.12 for Custom Window Systems' Series 7700 outswing aluminum French door ties the allowable design pressure directly to the lock option chosen, as shown on the approval's sheet 4. That linkage means the lock is not interchangeable, the wrong lock can drop your door's rated design pressure.

ANSI/BHMA A156.37 is the performance standard that governs multipoint locks. It covers 5 test categories: operational, cycle, strength, security, and finish. Locks earn an Operational Grade and, separately, a Security Grade.

BHMA notes that real-world results vary with installation, door and frame construction, maintenance, and environmental conditions. That is exactly why the hardware must match the tested assembly, not just meet a general grade.

In South Florida's HVHZ, the code adds a second layer. FBC 2023 Section 2411.3.2.1 requires operative door assemblies to be tested to TAS 202. TAS 202 is Florida's large- and small-missile impact test. Assemblies must also meet the forced-entry resistance requirements of AAMA/WDMA/CSA 101/I.S.2/A440.

That means HVHZ hurricane door locks must survive a 9-pound 2×4 traveling at 34 mph. They must also survive a deliberate forced-entry attempt. That standard goes well beyond what a hardware-store deadbolt provides.

Homeowners comparing entry door installation options should ask the contractor which specific approval the door carries. They should also verify the listed lock type on the NOA or FPA drawing before signing.

Hinges are structural, not decorative. FEMA's 2018 advisory called out inadequate hinge attachment as a root cause of door failures. Those failures occurred in Hurricanes Irma and Maria.

PGT's Estate FD450 aluminum inswing door specifies 4½ × 4-inch hinges as part of its tested configuration. Those hinges must be solid brass or stainless steel. FL-21142.12's bill of materials lists 4 × 4-inch steel hinges as tested components. It also lists multipoint lock strike plates at the head and sill. Additional tested components include astragal strike plates, a coastal aluminum astragal, and flush bolts.

An astragal is the vertical strip that seals the gap between double-door panels. It keeps both panels rigid under pressure. Flush bolts are the top-and-bottom rods that lock the inactive leaf to the frame head and sill. The inactive leaf is the panel that doesn't open first.

Removing or changing an astragal on a French door installation without verifying the replacement is listed in the approval can void the NOA. That leaves the homeowner with an uncertified assembly. If you are weighing frame materials alongside hardware, the impact door frame material cost guide breaks down aluminum, fiberglass, and steel options.

FBC Residential R609.10 sets the substitution rule for replacement door components. A replacement component must either comply with ANSI/WMA 100 or be evaluated by an approved entity. That entity can be a product evaluation entity, certification agency, testing laboratory, or engineer. The component may be installed only if it provides equal or greater structural performance.

That is a high bar. It generally means getting an engineering letter or finding a lockset already listed as an alternate in the approval. Miami-Dade NOA 23-0717.01 states plainly that the NOA terminates after its expiration date. It also terminates if there is a revision or change in the materials, use, or manufacture of the product.

A homeowner who installs an unlisted deadbolt voids the NOA. That homeowner may also face a failed inspection if the door is ever re-permitted for other work.

Warranty coverage compounds the risk. PGT's Replacement Product warranty covers hardware nonconformities for 10 years. However, it does not cover non-skilled labor such as replacing hardware. It treats tarnish, corrosion, oxidization, or discoloration of hardware finishes as normal weathering that is excluded. It also excludes damage from lack of use, so panels should be opened and closed monthly to prevent this.

Therma-Tru's warranty covers the multi-point locking mechanism, sills, and hinges for its fiberglass lines. Both PGT and Therma-Tru coverages exclude installations within 5 miles of a body of salt water. Both also exclude finish damage.

SafeGuard serves a 5-county region and files 1,500+ permits annually. That scale requires working relationships with every major building department in South Florida. Every SafeGuard permit is filed with the Florida Product Approval or Miami-Dade NOA number for each product installed. That means the tested hardware is on record before the inspector arrives.

When you receive a quote for a new impact door installation, it should name the door series. It should also list the approval number and the locking type. That locking type is either a multipoint MPLS or a lock-and-deadbolt. Those details determine the door's rated design pressure and its HVHZ eligibility.

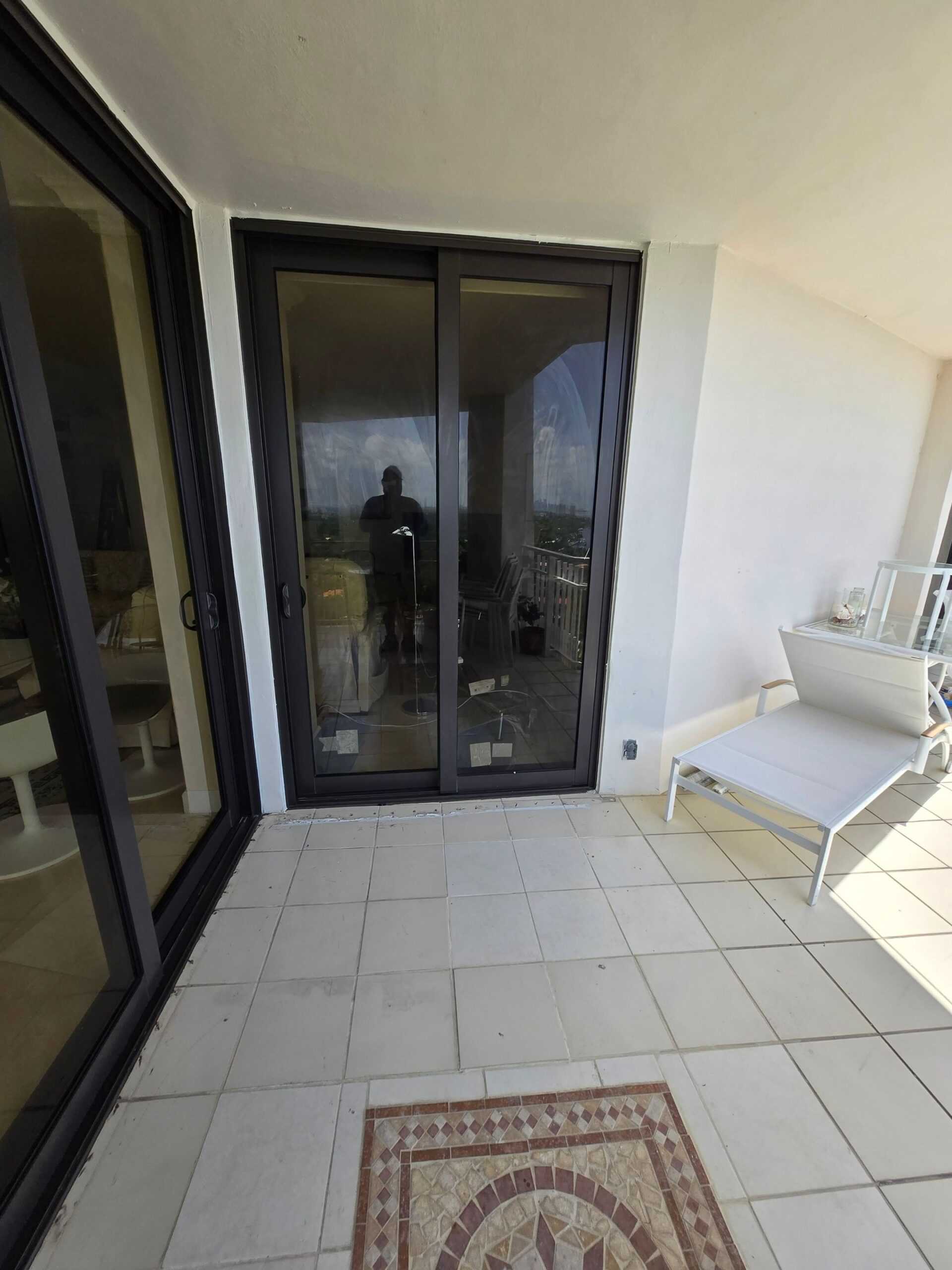

A quote that only says 'impact door' without naming the approval leaves you unable to verify compliance. You cannot confirm that the hurricane door locks and hinges meet the code for your specific opening. The hidden costs of impact door installation guide walks through every line item to check, including hardware, before you sign. For sliding doors, the sliding glass door installation page covers the anti-lift lock requirements specific to that configuration.
